5KW Solar DCDB 1in 1out - ED520101
Please sign in so that we can notify you about a reply
Application:
Residential Rooftop Solar
Capacity:
5KW
Current ADC:
25A
Enclosure:
Polycarbonate Enclosure
Ingress Protection:
IP65
Installation & Commissioning:
Comfortable, Light-weight, Effective results, Easy usage, Soft fabric
Logistics & Transportation:
To Pay Basis
Mppt Voltage Range:
150-600VDC
Negative Input:
Terminal Blocks
No of Array:
1
No Of MPPT:
1
No of Outputs:
1
Output with:
DC MCB
Part Number:
ED520101
Positive Input:
gPV Fuse Link with Holder
Rated Voltage:
600VDC
Standard Operating Voltage:
600VDC
Stock ID:
GISJB2779
Storage Temperature (?C):
40 Degree Celcius
Surge Protection: :
2P, Type-2, U-PV
Working Temperature:
50 Degree Celcius
Stock ID: GISJB2779
Part Number: ED520101

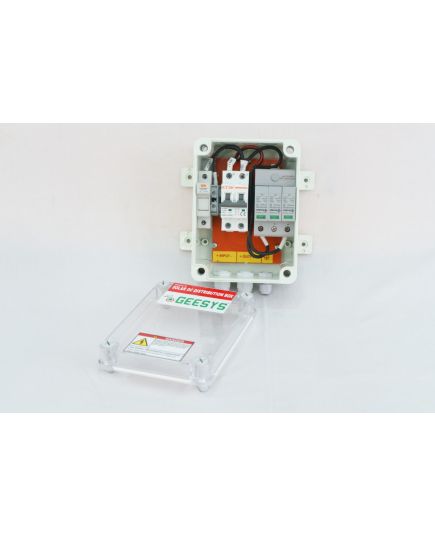

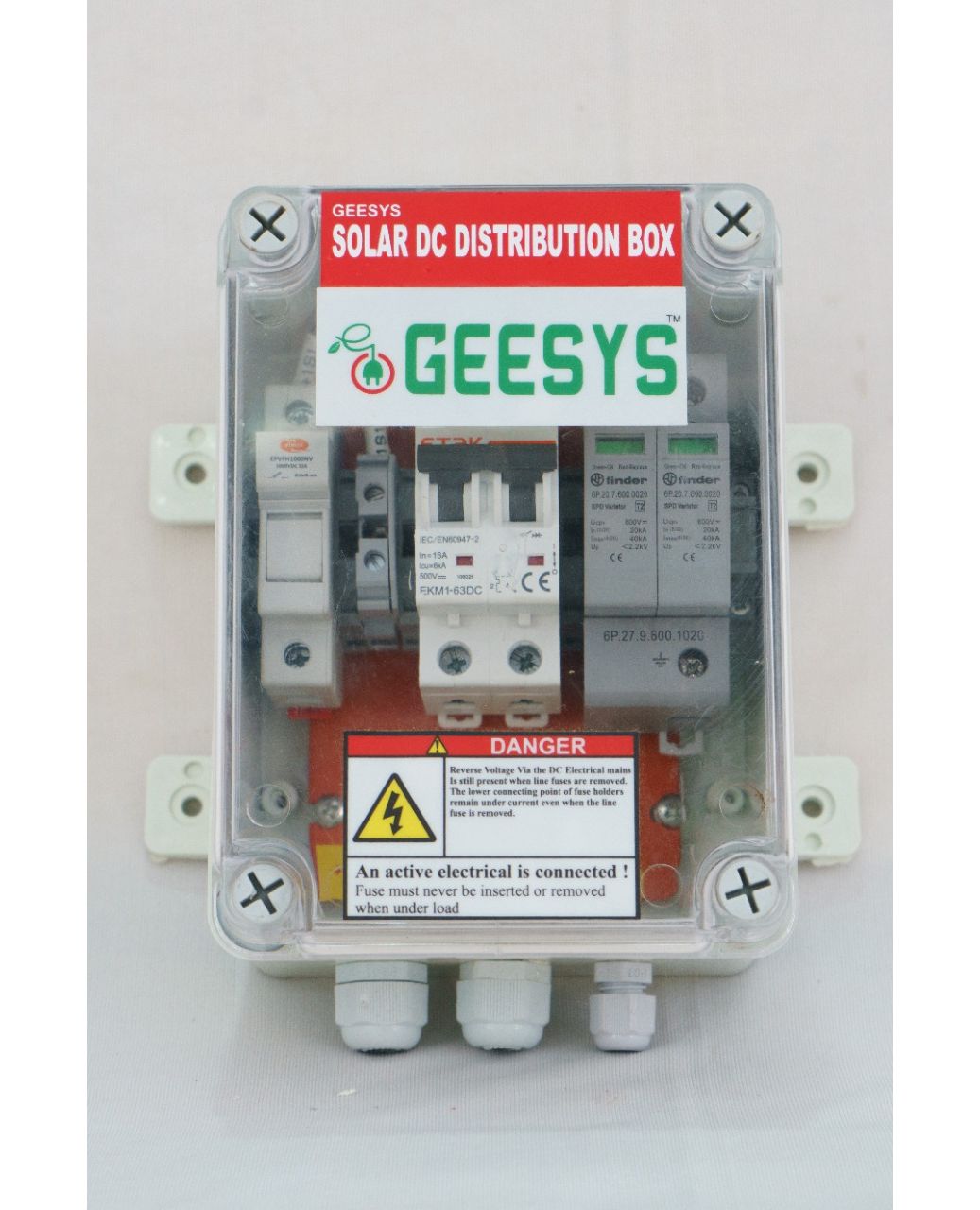

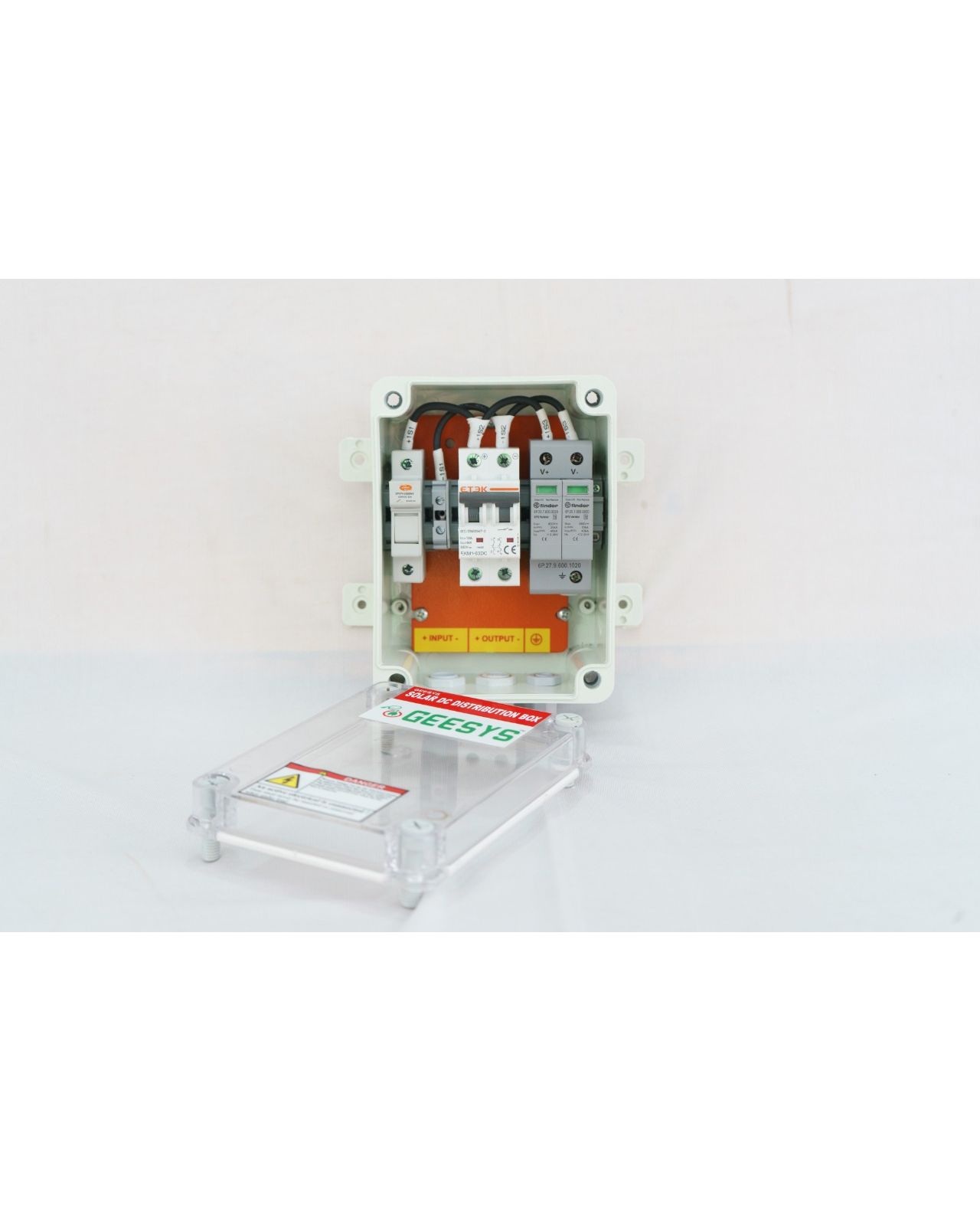

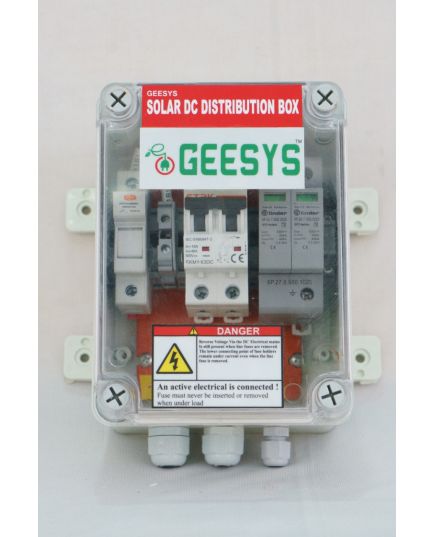

System Consist of:
Polycarbonate Enclosure, IP65, Transparent LID
Positive Input: 1000V DC , 15A Fuse Link with Holder,
Negative Input: 1000Vdc, 6.00 Sq.mm Terminal Blocks, Polyamide
Output : 600VDC, 25A, 10kA, DC MCB
Surge Protection: Surge Protection Device, Type-2, 40kA
Input Cable Entry: PVC Glands with lock nuts
Output Cable Entry: PVC Glands with lock nuts
GEESYS Solar DCDB
GEESYS Solar DCDB
